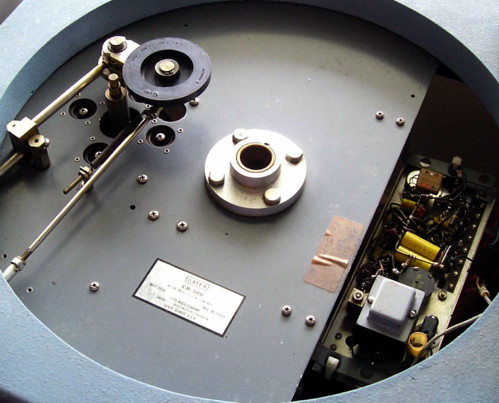

Close-up views of the Gates turntable with platter removed:

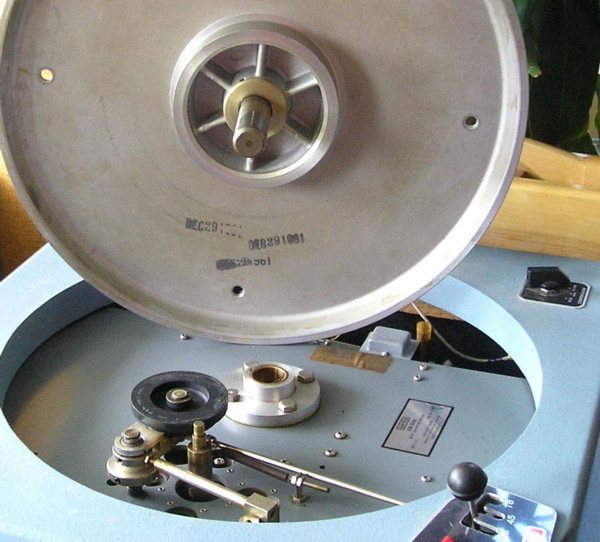

As mentioned on the main page, the platter will be removed and the oil filled shaft will be plugged for shipping. Notice that on this turntable the rubber idler wheel makes contact with the inner hub of the platter, not its outer rim.

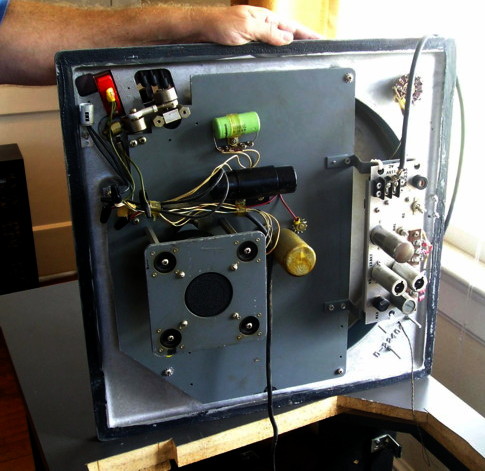

At left, the underside of the turntable...

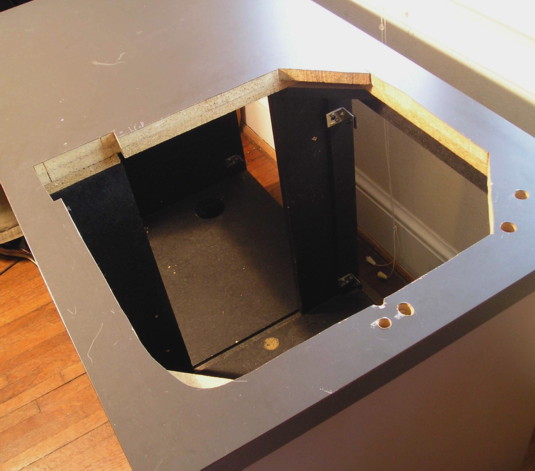

At right, the top of the cabinet showing custom cut-outs and drilling that match this turntable perfectly:

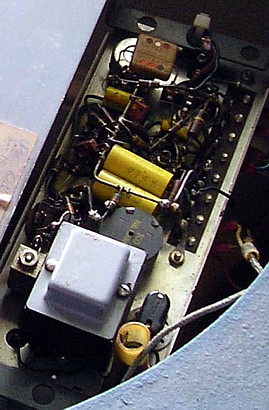

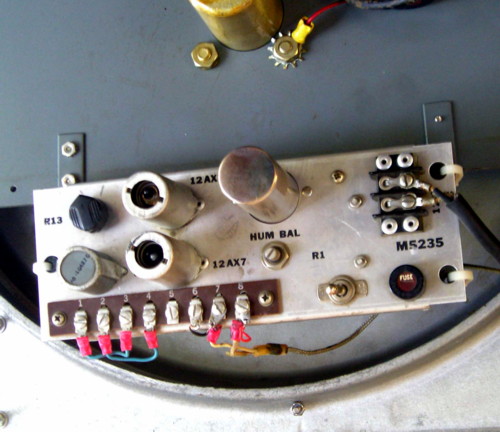

The preamp board:

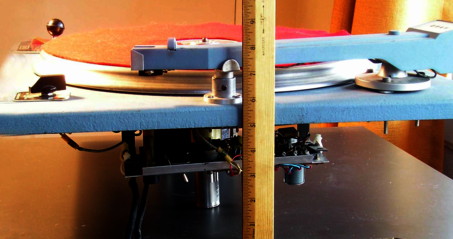

An edge-on view of the turntable:	Here, the platter's 45 RPM adaptor is up:

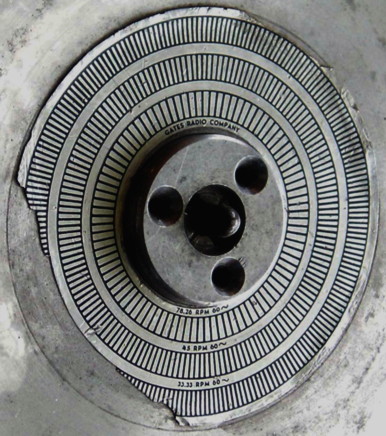

It's about 8" top-to-bottom overall.	The strobe disc is worn but perfectly functional.



A double stack of 16" transcription discs:
